Projecta  |  SKU: SC320D

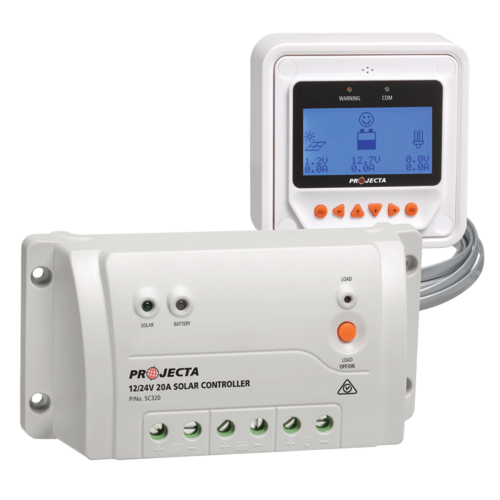

Projecta Automatic 12/24V 20A 3 Stage Solar Charge Premium Controller With Remote Control

$19979 $22199
Tax included Shipping calculated at checkout.

Flat Rate Shipping*
365-Day Warranty
Easy Returns

Delivery and Shipping

  • Shipping is a flat rate of $11.95, *however occasionally Heavy or Bulky items, Dangerous Goods or deliveries to regional/remote areas may incur an extra freight charge. Our Customer Service team will be in contact if this does occur.
  • Orders to major capital cities except WA generally arrive within 3 to 5 business days, WA delivery times are normally 5 to 10 business days.
  • For further information please refer our Shipping & Delivery page.

365-Day Warranty

  • AutoMegaStore offers a 365-day warranty - 365 days from date of purchase. We will either credit, replace, or refund your item. The warranty covers all manufacturing faults and defects.
  • For further information please refer our Warranty page.

Item Returns

  • At AutoMegaStore, we want you to be 100% happy with your purchase. If, for any reason, you are not satisfied, you may return the product to us within 30 days of the date of purchase.
  • Email us with your name, order number, and images of the intended returned product, and our Customer
    Care team will arrange authorisation for the return.
  • For further information please refer our Refunds & Returns page.

The ideal controller to suit panels producing up to 20A, often found in caravans.

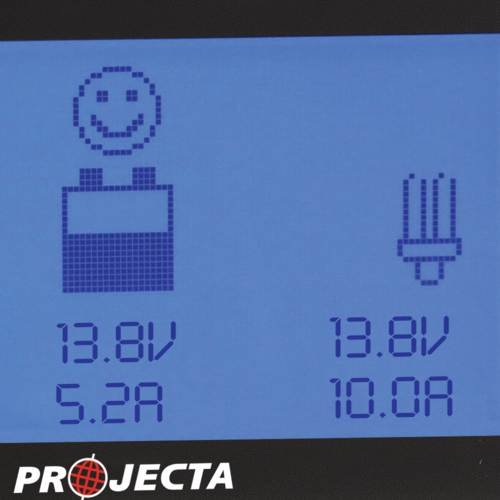

  • The sophisticated remote control provides total user control and advanced operation and allows the user to set a tailored charging profile and monitor battery and charging status.
  • The Projecta 3 Stage Automatic 12/24v 20a Solar Charge Controller With Remote Meter allows you to have total control over your deep cycle battery, even when it is mounted in a hard-to-reach location.

The ideal controller to suit panels producing up to 20A, often found in caravans. The sophisticated remote control provides total user control and advanced operation and allows the user to set a tailored charging profile and monitor battery and charging status.

FEATURES

Multi-chemistry
Set the charging profile to suit battery chemistry type: Wet, AGM or Gel, or user settings

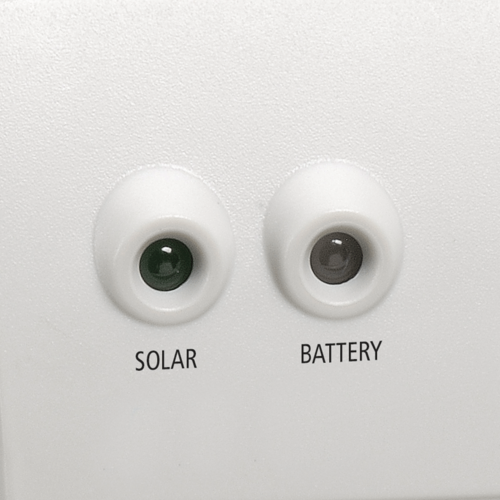

L.E.D status indicators
Displays quick reference to charge and battery status

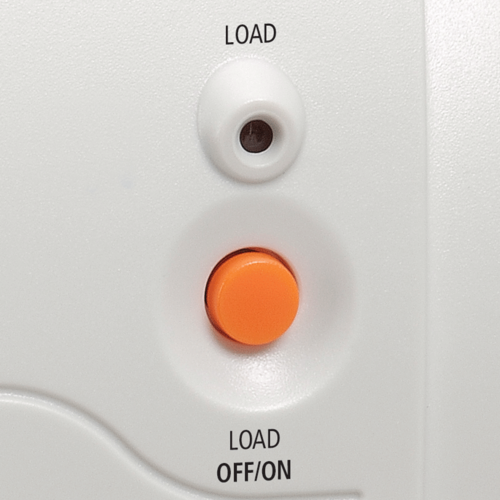

Manual load control
Allows user to switch the DC load on/off from the controller itself

Temperature sensor
Built-in sensor enables unit to optimise charge performance and offer additional protection. Optional sensor probe also available

Low voltage disconnect
Set the disconnect voltage point to best suit your application, protecting your battery from over discharge


SPECIFICATIONS

PART NO

SC320D

INPUT

12 or 24V

MAX INPUT

50VDC, 20A

MAX CHARGE / LOAD

20A

MAX PANEL SIZE

240W (12V)

LOAD SWITCHING

Negative

BATTERY

12V or 24V

CHARGE CONTROL

4 Stage Charging
Bulk /
Absorption:


Equalisation:


Float:


Gel:
AGM:
Wet:
Gel:
AGM:
Wet:
12V

14.2V
14.4V
14.6V

14.6V
14.8V
13.8V
24V

28.4V
28.8V
29.2V

29.2V
29.6V
27.6V

LVD DISCONNECT

12V: Default 11.1V
24V: Default 22.2V
User Set 9-17V
User Set 18-34V

LVD RECONNECT

12V: Default 12.6V
24V: Default 25.2V
User Set 9-17V
User Set 18-34V

STANDBY CURRENT

23.4mA

APPROVALS

EMC
