Universal easy to install trailer lamp wiring kit, available plugs are listed below in the description.
- Twin pack of square trailer LED lamps
- 10M of wiring included
- LED number plate light and red reflectors
This kit is universal; however plugs are not included. Please see the following plugs types below and select the type you require for your specific application.
Sockets, Plugs and Connectors
7 Pin Small Round Female Socket - AMS40185
7 Pin Round Female Socket - AMS40187
7 Pin Round Female Socket Metal - AMS40188
7 Pin Flat Female Socket - AMS40186
7 Pin Small Round Male Plug - AMS40189
7 Pin Male Flat Male Plug - AMS30466
7 Pin Male Round Male Plug Metal - AMS40190
7 Pin Male Plug Round - AMS40191
7 Pin Round Plug & Socket Connector - AMS40192
7 Pin Flat Plug & Socket Connector - AMS40193

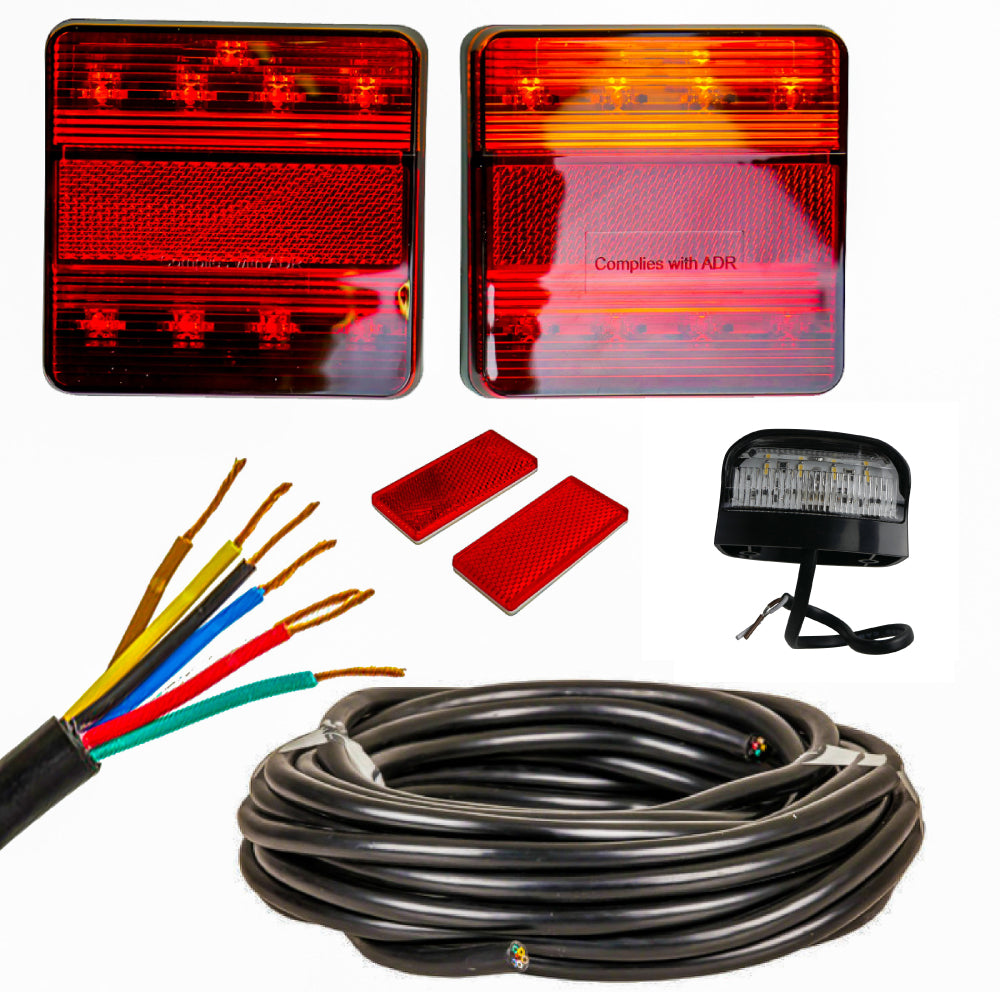

Full Kit Contents:
Square LED Trailer Lamp Set
10M of 5 Core 3.0mm trailer wire/cable
LED number plate light

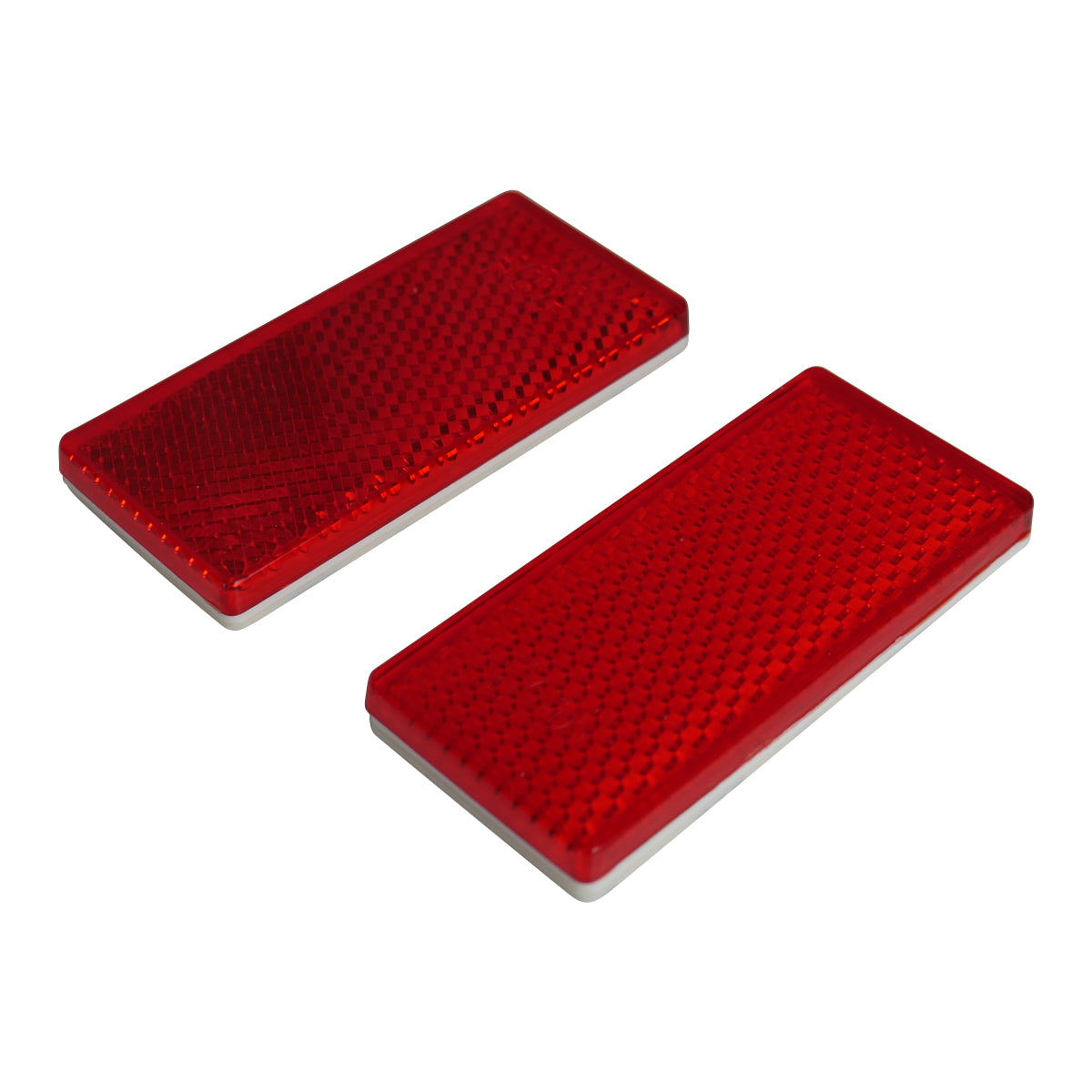

2 x Red reflectors
Square Trailer Lamp Set Specifications
Dimensions: 100mm x 100mm
Wiring:
White = Earth
Yellow = Indicator
Brown = Tail
Red = Stop
ADR: Approved
Includes stainless steel mounting bolts
UV Stabilized, Built in reflectors, 2x long-life LEDs with 2-year warranty.
Made in Taiwan

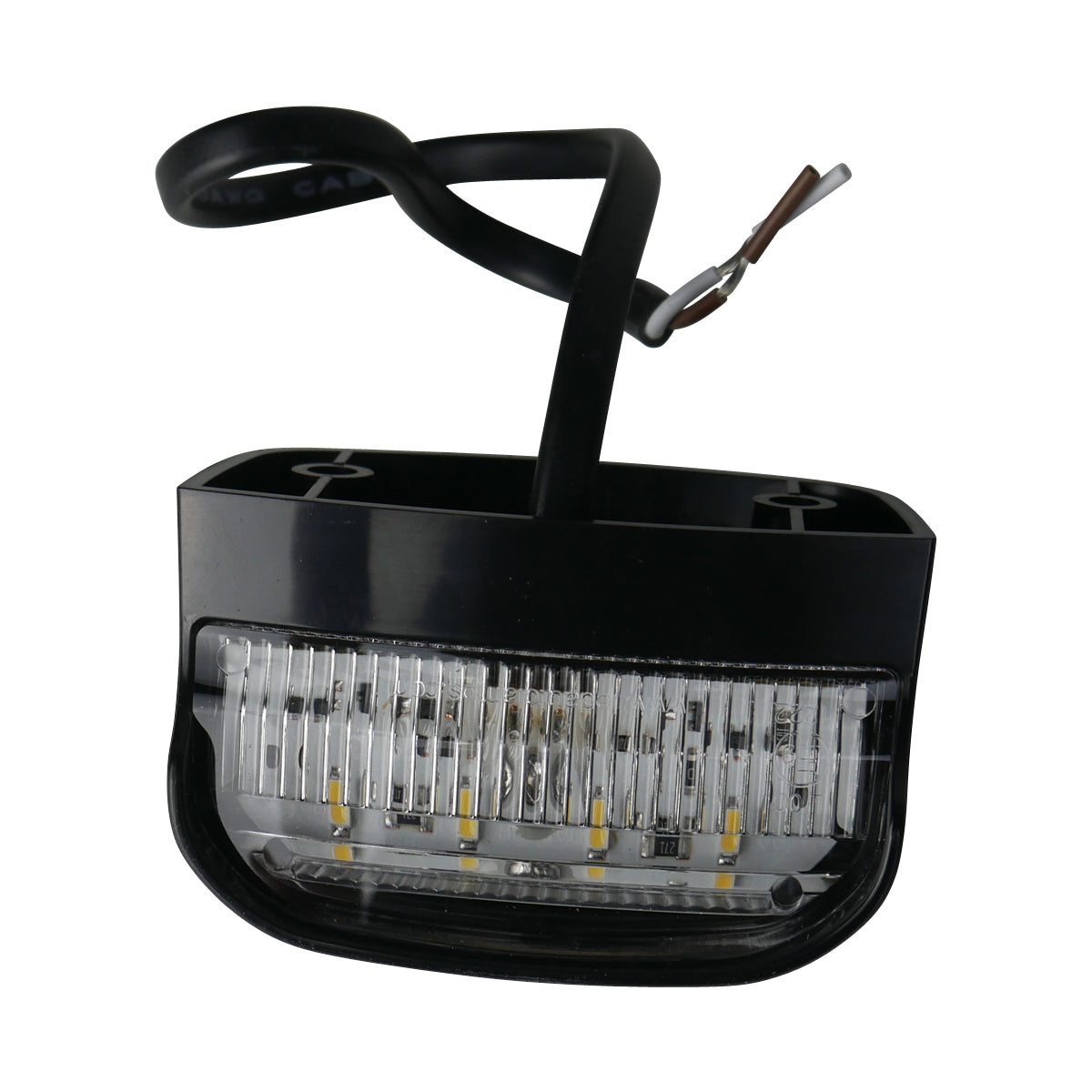

LED Number Plate Lamp
This Australian Road Approved License Lamp is suitable for 12 volt systems and is supplied with long life high intensity LEDs.
- 4 LEDs long life up to 100,000 hours
- Low current draw
- Easy to fit
- UV stabilised

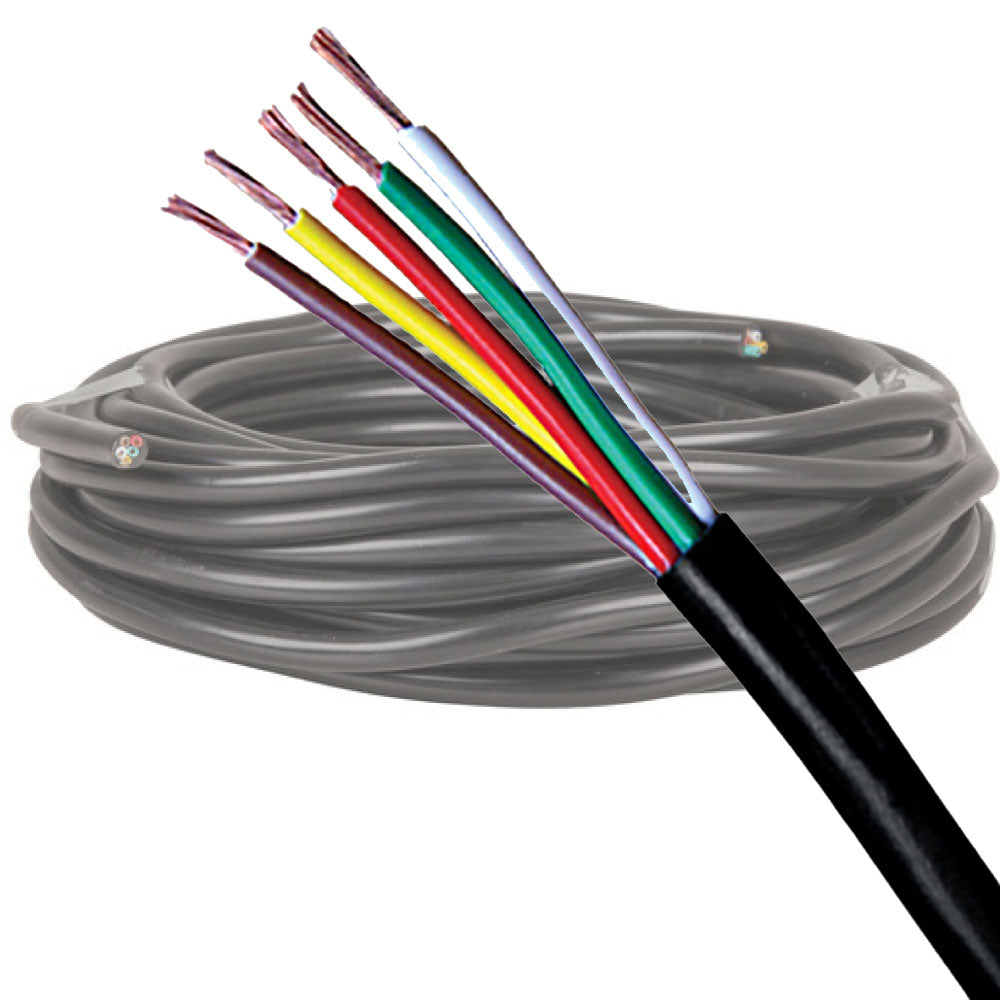

Wire Specifications
10M cut of 5 core 3mm trailer wire ideal for automotive uses. Cable cores are red, yellow, brown, white and green.
No. of cores: 5
Conductor No./Dia (mm): 14/0.32
Nom Area (mmsq): 1.13
Insulation Thickness (mm): 0.4/0.6
Nom. Electrical Resistance @20 °C (ohm/km): 15.8
Nom. O.D: 7.3
